Webhook Settings

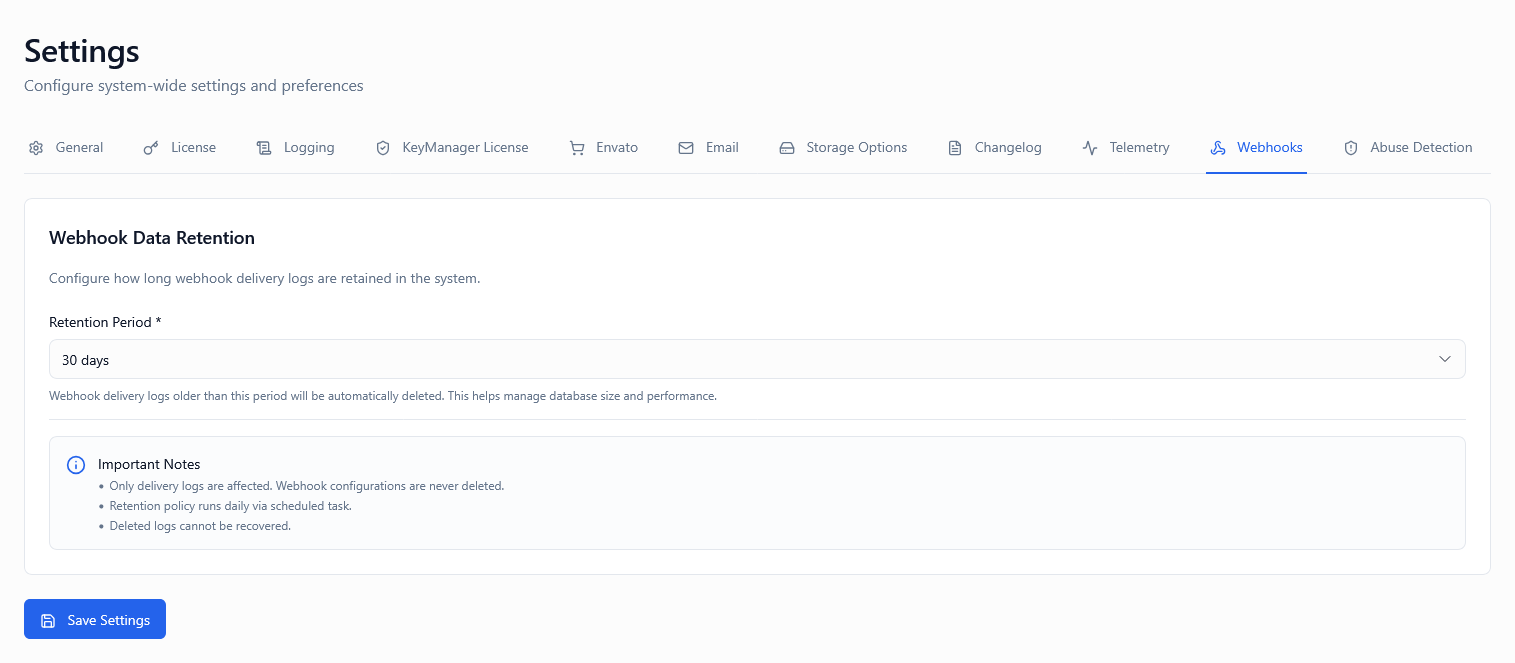

Screenshot of Webhook Settings tab

Overview

Webhooks enable real-time event notifications from the license management system to your own applications and services. When configured correctly, webhooks help you:

• Receive instant notifications about license lifecycle events
• Integrate license data into your own systems automatically
• Build custom workflows and automations
• Maintain audit trails and compliance records
• Trigger downstream processes based on license state changes

The webhook system consists of two main components:

1. Webhook Endpoints – URLs you configure to receive event notifications
2. Webhook Delivery Logs – Records of every delivery attempt, including requests, responses, and retry attempts

This settings tab controls how long webhook delivery logs are retained in the system.

What Are Webhook Events?

The system generates webhook events for critical license lifecycle changes, including:

License Events

• license.created – New license key generated
• license.activated – License activated on a device
• license.deactivated – License deactivated from a device
• license.suspended – License moved to suspended state
• license.unsuspended – License restored from suspension
• license.expired – License reached expiration date
• license.revoked – License permanently revoked
• license.renewed – License renewal processed
• license.updated – License metadata or limits modified

Validation Events

• validation.success – License validation succeeded
• validation.failed – License validation failed
• abuse.detected – Suspicious activation pattern detected
• limit.exceeded – Activation or usage limit reached

Each webhook event includes:

• Event type and timestamp
• Full license details (key, status, metadata)
• Context about what triggered the event
• Customer information (if available)
• Device and activation details (for device-related events)

What Are Webhook Delivery Logs?

Webhook delivery logs are detailed records of every attempt to deliver an event to your webhook endpoints. Each log entry contains:

Request Information

• Timestamp – When the delivery was attempted (ISO 8601 format)
• Event Type – Which event triggered the webhook (e.g., license.activated)
• Endpoint URL – The destination URL that received the webhook
• HTTP Method – Usually POST
• Request Headers – All headers sent with the webhook (including signatures)
• Request Body – Complete JSON payload sent to your endpoint
• Payload Size – Size of the JSON payload in bytes

Response Information

• Response Status Code – HTTP status returned by your endpoint (200, 404, 500, etc.)
• Response Headers – Headers returned by your server
• Response Body – Content returned by your endpoint (first 10KB)
• Response Time – How long your endpoint took to respond (milliseconds)
• Delivery Status – Success, Failed, Pending

Retry Information

• Attempt Number – Which delivery attempt this was (1st, 2nd, 3rd, etc.)
• Max Attempts – Total retry attempts allowed
• Next Retry Time – When the next retry will occur (if applicable)
• Retry Delay – Exponential backoff delay between retries
• Final Status – Whether delivery ultimately succeeded or failed

Diagnostic Information

• Error Messages – Connection errors, timeouts, or other failures
• TLS/SSL Details – Certificate validation information
• DNS Resolution – IP address resolved for the endpoint
• Network Latency – Time spent in transit
• Failure Reason – Human-readable explanation of why delivery failed

Webhook Retention Days

Type: Dropdown selection
Options: 7 days, 15 days, 30 days
Default: 30 days

Screenshot showing retention configuration dropdown

Description

Controls how long webhook delivery logs are retained in the system before being automatically deleted.

• 7 days: Minimal retention for basic debugging
• 15 days: Moderate retention for regular monitoring
• 30 days: Extended retention for compliance and analysis

After the retention period expires, delivery logs are permanently deleted and cannot be recovered. The deletion process runs automatically each night and removes logs older than the configured retention period.

⚠️ Important: Only delivery logs are deleted. The webhook endpoints themselves, event configurations, and actual license data are never affected by this setting.

What Gets Deleted

When logs expire, the system removes:

✅ Request and response bodies
✅ HTTP headers (both request and response)
✅ Timing and performance metrics
✅ Error messages and diagnostic data
✅ Retry attempt records

What Is Preserved

The following data is never deleted regardless of retention:

🔒 Webhook endpoint configurations
🔒 License records and history
🔒 Aggregated delivery statistics (success rates, average response times)
🔒 Event counters and metrics
🔒 Security audit logs (separate from webhook logs)

How Retention Works

1. Webhook event occurs (e.g., license.activated)
2. System attempts delivery to configured endpoints
3. Detailed log entry is created with full request/response data
4. Log is stored and available for the retention period
5. Nightly cleanup job runs at 02:00 UTC
6. Logs older than retention period are identified
7. Expired logs are permanently deleted
8. Storage space is reclaimed

Why Retention Matters

Debugging and Troubleshooting

Webhook delivery logs are essential for:

• Diagnosing why webhooks aren’t reaching your endpoint
• Investigating intermittent delivery failures
• Analyzing response times and performance issues
• Understanding why your endpoint returned errors
• Reviewing the exact payload sent for an event
• Identifying network or TLS/SSL problems

Compliance and Auditing

Many industries require:

• Audit trails of data transmitted to third-party systems
• Records of when and how customer data was shared
• Proof of delivery for contractual obligations
• Forensic evidence for security investigations
• Timestamped records for regulatory compliance (SOC2, GDPR, HIPAA)

Cost and Storage Management

Webhook logs can consume significant storage:

• Each log entry can be 5-50 KB depending on payload size
• High-volume systems may generate thousands of logs per day
• Longer retention = higher storage costs
• Shorter retention = lower costs but less debugging capability

💡 Tip: Balance retention duration with your actual needs. Most issues are discovered within 7 days.

Example Scenarios

Scenario 1: Active Development and Integration

Situation: You’re building a new integration that consumes webhook events. You need to debug payload formatting and endpoint responses.

Configuration:

• Webhook Retention Days: 7 days

Reasoning: During active development, you’re monitoring webhooks daily. 7 days provides sufficient history for debugging while minimizing storage costs. You can quickly identify and fix issues.

Expected Outcome: You can view recent webhook attempts, debug response codes, examine exact payloads, and iterate rapidly without accumulating months of test data.

Scenario 2: Production SaaS Platform

Situation: Your production system processes hundreds of license events daily. Customers occasionally report delayed integrations or missing notifications.

Configuration:

• Webhook Retention Days: 15 days

Reasoning: This provides a two-week window to investigate customer reports while balancing storage costs. Most issues are reported within a few days of occurrence.

Expected Outcome: When a customer reports “I didn’t receive a webhook notification last week,” you can search the logs, verify delivery attempts, and provide specific evidence of what was sent and when.

Scenario 3: Enterprise with Compliance Requirements

Situation: Your organization has SOC2 certification and must maintain audit trails for external data transmissions for at least 30 days.

Configuration:

• Webhook Retention Days: 30 days

Reasoning: Regulatory compliance requires documented evidence of data sharing. 30-day retention satisfies audit requirements and provides ample time for internal reviews.

Expected Outcome: During compliance audits, you can produce complete records of all webhook deliveries, including what data was sent, when, and to which endpoints, covering the required audit period.

Scenario 4: High-Volume API Service

Situation: Your API generates 10,000+ webhook events per day. Storage costs are becoming significant.

Configuration:

• Webhook Retention Days: 7 days

Reasoning: At 10KB average per log entry, you’re generating ~100MB of logs daily. 30-day retention would store 3GB+. With 7-day retention, you maintain recent debugging capability while keeping storage costs manageable.

Expected Outcome: Recent issues can still be debugged, but storage costs are reduced by ~75% compared to 30-day retention.

Real-World Example: Investigating Failed Webhooks

Problem: Customer reports that their license activation webhook isn’t triggering their internal provisioning system.

Investigation Process:

Step 1: Locate the Delivery Logs

Navigate to Admin Portal → Webhooks → Delivery Logs, and filter by:

• Event type: license.activated
• Customer or license key
• Time range: Last 7 days

Step 2: Examine the Log Entry

You find multiple delivery attempts with these details:

Event: license.activated
Timestamp: 2024-01-15 14:32:18 UTC
Endpoint: https://customer.example.com/webhooks/license
Status: Failed (HTTP 503)
Attempts: 3/5
Response: Service Temporarily Unavailable
Response Time: 30,247ms

Step 3: Review Request Details

The full request shows:

• Correct endpoint URL ✅
• Valid signature in headers ✅
• Complete JSON payload with all required fields ✅
• Proper content-type header ✅

Step 4: Analyze Response

The response reveals:

• Customer’s endpoint returned 503 status code
• Response took 30+ seconds (near timeout)
• Error message: “Database connection pool exhausted”

Step 5: Resolution

You contact the customer with specific evidence:

• “Your endpoint received the webhook at 14:32:18 UTC”
• “It returned HTTP 503 after 30 seconds”
• “The error suggests your database was overloaded”
• “We’ve retried 3 times with exponential backoff”

Customer investigates and finds their database was experiencing high load during that time window. They fix the infrastructure issue, and you manually retry the failed webhooks.

Outcome: Without detailed delivery logs, this would have been impossible to diagnose. The logs provided concrete evidence of what happened and when.

Retention Period Comparison

Best Practices

Choosing Retention Duration

Start with 30 days initially:

1. Monitor how often you actually access logs older than 7 days
2. Review your compliance and audit requirements
3. Consider your average time-to-discovery for webhook issues
4. After 2-3 months, adjust based on actual usage patterns

Indicators you need longer retention:

• 📊 Compliance or regulatory requirements mandate it
• 🕐 Issues are often discovered weeks after they occur
• 🏢 Enterprise customers require detailed audit trails
• 🔍 You perform monthly or quarterly webhook audits
• ⚖️ Legal or contractual obligations require records

Indicators you can use shorter retention:

• 💰 Storage costs are a significant concern
• 🚀 You have high webhook volume (1000s per day)
• ⚡ Issues are always caught within days
• 🔧 You monitor webhooks actively and proactively
• 📉 Very few failures occur in your system

Monitoring and Alerts

Don’t rely solely on logs – set up proactive monitoring:

Set up alerts for:

• Webhook delivery failure rate exceeds threshold (e.g., >5%)
• Specific endpoint consistently failing
• Response times degrading over time
• Retry queue growing
• Unusual spike in failed deliveries

Regular reviews:

• Weekly: Check for any failed deliveries
• Monthly: Review endpoint performance and response times
• Quarterly: Analyze patterns and adjust retention if needed

Export critical logs:

• For regulatory compliance, export logs to external storage
• Archive important webhook interactions to your own database
• Don’t rely solely on the built-in retention period for critical records

Storage Optimization

Reduce webhook log volume:

1. Only subscribe to events you actually use
2. Disable test endpoints that are no longer needed
3. Use a single endpoint with event filtering instead of multiple endpoints
4. Consider batching events if your use case allows it

Calculate your storage needs:

Daily logs = (Events per day) × (Average log size)
Total storage = Daily logs × Retention days

Example:
500 events/day × 10KB/log × 30 days = 150MB

💡 Tip: If storage is a concern but compliance requires longer retention, export logs to your own archival system and use 7-day retention in the platform.

Security Considerations

What’s in the Logs?

Webhook delivery logs contain:

Sensitive data that IS logged:

• Full license keys
• Customer email addresses
• Device identifiers and fingerprints
• IP addresses of activations
• Product and metadata fields
• Your webhook endpoint URLs
• Request/response headers (including signatures)

Sensitive data that is NOT logged:

• Payment information (never included in webhooks)
• Customer passwords (never included in webhooks)
• Your webhook endpoint authentication tokens (masked in logs)

Access Control

⚠️ Important: Webhook delivery logs are only accessible to:

• Admin portal users with appropriate permissions
• Users with “View Webhooks” permission
• API calls authenticated with admin credentials

Regular users and customers cannot access webhook delivery logs.

Compliance Implications

GDPR Considerations:

• Webhook logs may contain personal data (emails, IPs)
• Logs are automatically deleted after retention period (data minimization)
• Customers can request deletion of specific webhook logs (right to erasure)
• Consider shorter retention if processing EU citizen data

Data Residency:

• Webhook logs are stored in the same region as your primary data
• If your endpoints are in different regions, request/response data crosses boundaries
• Document data flows for compliance purposes

Security Best Practices:

• Use HTTPS endpoints exclusively
• Implement webhook signature verification
• Validate and sanitize webhook payloads before processing
• Monitor for unauthorized access to logs
• Regularly audit which users have webhook log access

Performance Impact

System Performance

Webhook delivery logs have minimal impact on system performance:

During webhook delivery:

• Logging adds <5ms to delivery time
• Async background process – doesn’t block webhook sending
• Minimal CPU overhead

During retention cleanup:

• Cleanup runs at 02:00 UTC during low-traffic hours
• Processes in batches to avoid load spikes
• Typically completes in <30 seconds for normal volumes
• No noticeable impact on webhook delivery or API performance

Query Performance

Accessing logs:

• Recent logs (last 24 hours): <100ms query time
• Older logs: May take 1-2 seconds to retrieve
• Logs are indexed by event type, timestamp, and endpoint
• Large date ranges may be slow – use filters to narrow results

Optimization tips:

• Filter by event type or endpoint to improve query speed
• Search smaller date ranges first
• Use export functionality for bulk analysis rather than in-browser scrolling

Troubleshooting Failed Webhooks

Common Failure Patterns

HTTP 4xx Errors (Client-side issues):

HTTP 5xx Errors (Server-side issues):

Network Errors:

Webhook Retry Strategy

When delivery fails, the system automatically retries with exponential backoff:

Retry Schedule:

1. Attempt 1: Immediate (0 seconds)
2. Attempt 2: After 1 minute
3. Attempt 3: After 5 minutes
4. Attempt 4: After 15 minutes
5. Attempt 5: After 1 hour

Total retry window: ~1.5 hours

After 5 failed attempts, the webhook is marked as permanently failed and must be manually retried.

💡 Tip: Implement an endpoint that returns 200 OK quickly and processes the webhook asynchronously. Don’t perform heavy operations during the HTTP request.

Recommended Configurations

For Startups and Small Teams

Low webhook volume, limited resources

• Webhook Retention Days: 15 days

Reasoning: Provides adequate debugging time without excessive storage costs. Small teams typically discover issues within 1-2 weeks.

For Growing SaaS Companies

Moderate webhook volume, customer integrations

• Webhook Retention Days: 30 days

Reasoning: Gives you a full month to investigate customer reports. Balances customer support needs with storage costs.

For Enterprise Software

Compliance requirements, audit trails

• Webhook Retention Days: 30 days

Reasoning: Meets most compliance frameworks’ audit trail requirements. Provides comprehensive troubleshooting window.

For High-Volume API Platforms

Thousands of webhooks daily, cost-sensitive

• Webhook Retention Days: 7 days

Reasoning: Minimizes storage costs while maintaining recent debugging capability. Combine with external archival for long-term compliance needs.

Important Notes

⚠️ Webhook logs are NOT event data – They are delivery records. The actual license events and data remain in the system regardless of retention settings.

🔄 Deletion is permanent – Once logs are deleted after retention period, they cannot be recovered. Export critical logs before they expire.

📊 Summary statistics are preserved – Aggregated metrics (success rates, average response times) are kept indefinitely even after detailed logs are deleted.

📧 Configure alerts separately – Webhook delivery failures should trigger real-time alerts, not rely on manual log review.

💾 Export for long-term retention – If you need logs beyond 30 days for compliance, use the export functionality to archive to your own storage.

🔐 Logs contain sensitive data – Treat webhook delivery logs as confidential. They contain license keys, customer emails, and device information.

Summary Table

Testing Your Webhook Configuration

Step 1: Set Up a Test Endpoint

Use a webhook testing service like:

• webhook.site
• requestbin.com
• Your own test server with logging

Step 2: Configure the Endpoint

In Admin Portal → Webhooks → Endpoints:

1. Add your test endpoint URL
2. Subscribe to relevant events (e.g., license.created)
3. Save the configuration

Step 3: Trigger a Test Event

Create a test license or perform an action that triggers a webhook:

1. Navigate to Licenses → Create New License
2. Fill in test details
3. Click "Create License"

Step 4: Verify Delivery in Logs

Within seconds, check Admin Portal → Webhooks → Delivery Logs:

• Find the log entry for your test event
• Verify status is “Success” (HTTP 200)
• Click to view full request/response details
• Confirm payload contains expected data

Step 5: Test Failure Scenarios

Temporarily break your endpoint to test retry behavior:

1. Change endpoint URL to an invalid address
2. Trigger another event
3. Watch delivery logs show retry attempts
4. Observe exponential backoff timing

Step 6: Test Retention

Set retention to 7 days (for testing) and note:

• Logs remain accessible within retention period
• Older logs are deleted by nightly cleanup job
• Endpoint configuration is unaffected

Step 7: Restore Production Settings

After testing:

1. Remove test endpoints
2. Restore retention to production value (typically 30 days)
3. Verify real endpoints are working correctly

Frequently Asked Questions

Q: What happens if I change retention from 30 days to 7 days?
A: Logs older than 7 days will be deleted during the next nightly cleanup (02:00 UTC). This deletion is permanent and cannot be undone.

Q: Can I export webhook logs before they’re deleted?
A: Yes. Navigate to Webhooks → Delivery Logs, apply your desired filters, and click “Export to CSV” or “Export to JSON”. Export before the retention period expires.

Q: Do webhook logs count toward my storage quota?
A: Yes. Webhook delivery logs are included in your overall storage usage. Higher retention or higher webhook volume increases storage consumption.

Q: How can I see how much storage my webhook logs are using?
A: Navigate to Settings → Storage tab to view a breakdown of storage usage by category, including webhook logs.

Q: What if I need logs older than 30 days for a legal investigation?
A: You should proactively export and archive important logs to your own storage system. Logs deleted from the platform cannot be recovered.

Q: Can I set different retention periods for different webhooks?
A: No. The retention setting applies globally to all webhook delivery logs. Consider exporting specific events to your own system if you need varied retention.

Q: Are failed deliveries deleted at the same time as successful ones?
A: Yes. All delivery logs (success or failure) are subject to the same retention period based on their creation timestamp.

Q: How do I manually retry a failed webhook?
A: In the Delivery Logs, find the failed webhook entry, click the “⋮” menu, and select “Retry Delivery”. This creates a new delivery attempt with a new log entry.

Q: Can customers see webhook delivery logs for their licenses?
A: No. Webhook delivery logs are only visible to admin users. Customers cannot access these logs through the User Portal.

Q: What’s the difference between webhook logs and event logs?
A: Event logs record what happened in your system (e.g., “License XYZ was activated”). Webhook logs record the delivery attempts to notify external systems about those events. Event logs are permanent; webhook logs are temporary.

Q: If my endpoint is down, will retries continue beyond the retention period?
A: No. Retries stop after 5 attempts (~1.5 hours). If delivery fails after all retries, the log will be marked as “Permanently Failed” and will be deleted after the retention period. Manual retry is required.

How to Access

1. Log in to the Admin Portal
2. Navigate to Settings in the main menu
3. Click the Webhooks tab
4. Adjust the Webhook Retention Days dropdown
5. Click Save Settings at the bottom

Changes take effect immediately. The next nightly cleanup job (02:00 UTC) will apply the new retention period.

Related Settings

• Settings Overview - All settings tabs
• Logging Settings - General system logging configuration
• Storage Settings - Overall storage management
• Telemetry Settings - Event tracking and analytics

Proper webhook log retention balances debugging capability, compliance requirements, and storage costs. Choose a retention period that matches your operational needs and monitoring practices.
