Storage & File Management

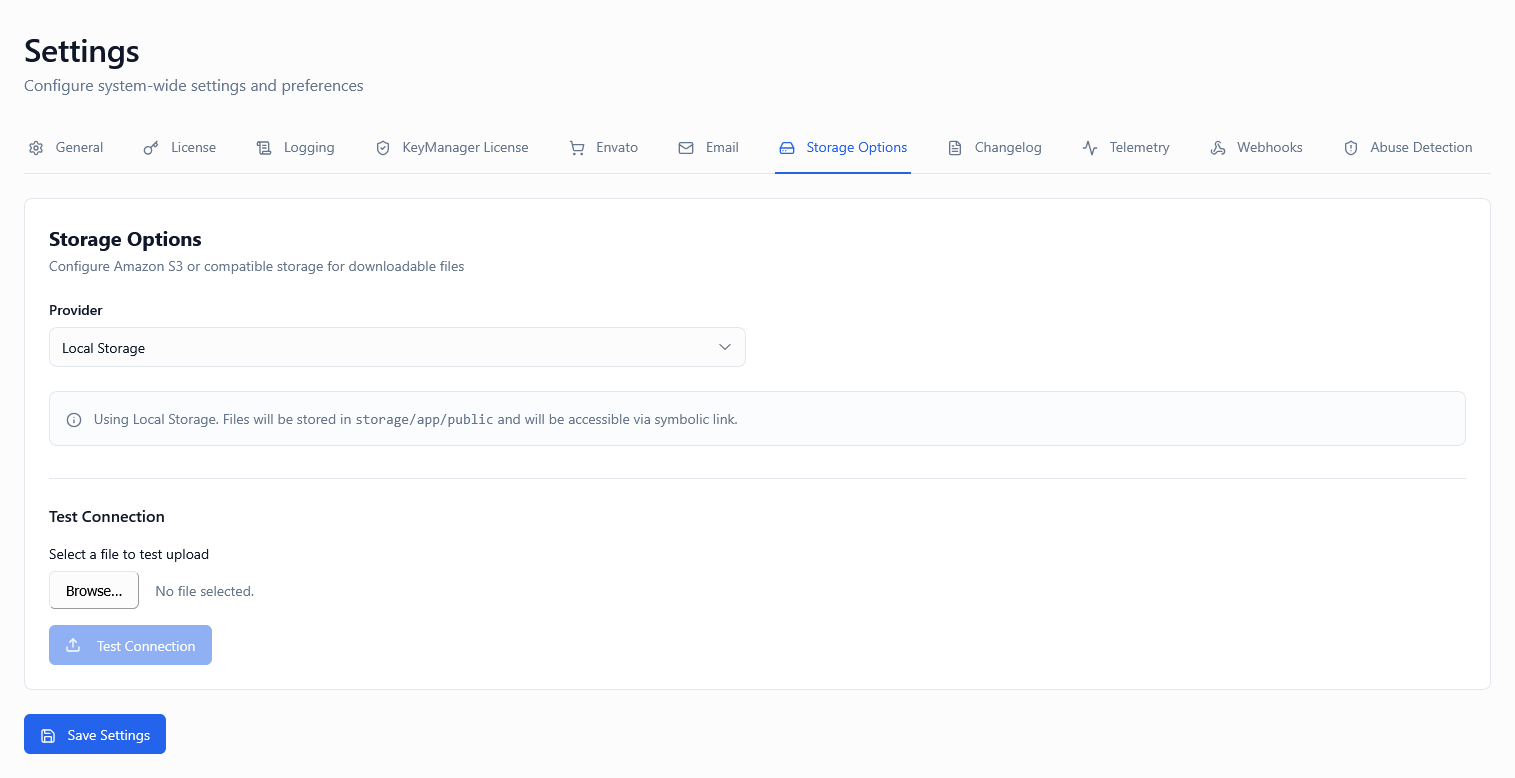

Screenshot of Storage Settings tab

Overview

Storage settings control where and how your platform stores files, product images, downloads, and backups. When configured correctly, they help you:

• Store product attachments, license files, and customer downloads
• Scale storage independently from your application servers
• Reduce infrastructure costs by using cloud-optimized storage
• Provide fast, global access to files via CDN integration
• Maintain secure, redundant backups

These settings work together:

1. Storage Driver – Selects the storage backend (Local, S3, S3-Compatible)
2. AWS Credentials – Authenticates with your storage provider
3. Region & Bucket – Specifies where files are stored
4. Public URL – Defines how files are accessed by users
5. Test Connection – Validates your configuration

Storage Driver

Type: Dropdown selection
Default: Local
Options: Local, S3, S3-Compatible

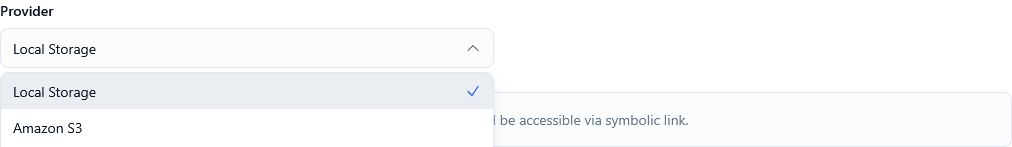

Screenshot showing storage driver dropdown

Description

Determines which storage backend the platform uses for file operations.

• Local: Stores files on the application server’s filesystem
• S3: Uses Amazon S3 or AWS-compatible services
• S3-Compatible: Uses third-party S3-compatible storage (DigitalOcean Spaces, Wasabi, MinIO, Backblaze B2)

When to Use Local Storage

Use local storage if:

✅ You’re just starting out and testing the platform
✅ You have minimal storage needs (<10 GB)
✅ You run a single-server deployment
✅ You have fast local disks (SSD/NVMe)
✅ Your users are geographically concentrated

When to Use S3 Storage

Use S3 or S3-compatible storage if:

✅ You need scalability and redundancy
✅ You plan to scale to multiple servers
✅ You want automatic backups and versioning
✅ You need CDN integration for global performance
✅ You want to offload storage from application servers
✅ You have users distributed globally

Storage Driver Comparison

⚠️ Warning: Changing storage drivers requires migrating existing files. Plan the migration carefully.

AWS Access Key ID

Type: Text input
Default: Empty
Required: When using S3 or S3-Compatible storage

Description

The access key ID from your AWS IAM user or S3-compatible service.

• Used for authentication with the storage service
• Part of the credential pair (Access Key ID + Secret Access Key)
• Should have appropriate S3 permissions

Required IAM Permissions

Your IAM user must have these permissions:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:GetObject",
        "s3:DeleteObject",
        "s3:ListBucket"
      ],
      "Resource": [
        "arn:aws:s3:::your-bucket-name",
        "arn:aws:s3:::your-bucket-name/*"
      ]
    }
  ]
}

Security Best Practices

🔐 Create a dedicated IAM user for KeyManager (don’t use root credentials)
🔐 Use least-privilege permissions (only grant required S3 actions)
🔐 Rotate keys regularly (every 90 days recommended)
🔐 Never commit keys to version control
🔐 Use environment variables for sensitive credentials
🔐 Enable MFA for the IAM account in AWS console

⚠️ Warning: Exposed access keys can lead to unauthorized access and unexpected AWS bills.

💡 Tip: Use AWS Organizations and SCPs to limit what compromised keys can do.

AWS Secret Access Key

Type: Password input (masked)
Default: Empty
Required: When using S3 or S3-Compatible storage

Description

The secret access key paired with your AWS Access Key ID.

• Kept secret and never displayed after initial entry
• Used to sign API requests to S3
• Should be stored securely and never logged

Important Notes

⚠️ Cannot be retrieved after creation – Save it when AWS generates it
⚠️ Treat like a password – Never share or expose it
⚠️ Regenerate if compromised – Immediately create new credentials if exposed

What to Do If Keys Are Compromised

1. Immediately deactivate the compromised key in AWS IAM
2. Generate new credentials with a fresh Access Key ID and Secret
3. Update KeyManager settings with new credentials
4. Review AWS CloudTrail logs for unauthorized activity
5. Check for unexpected S3 charges in billing console
6. Rotate all related credentials as a precaution

💡 Tip: Use AWS IAM Access Analyzer to monitor external access to your buckets.

AWS Region

Type: Dropdown or text input
Default: us-east-1
Required: When using S3 or S3-Compatible storage

Screenshot showing region dropdown

Description

Specifies the AWS region where your S3 bucket is located.

• Must match the bucket’s actual region
• Affects latency for storage operations
• Impacts data residency and compliance

Common AWS Regions

How to Choose a Region

Considerations:

1. User Location: Choose a region close to your primary user base
2. Compliance: Some industries require data to stay in specific regions
3. Cost: Pricing varies by region (us-east-1 is often cheapest)
4. Availability: Not all AWS services are in all regions
5. Disaster Recovery: Consider a secondary region for backups

Region-Specific Settings for S3-Compatible Providers

DigitalOcean Spaces:

Region: nyc3, sfo3, sgp1, fra1, ams3
Format: nyc3 (not us-east-1)

Wasabi:

Region: us-east-1, us-west-1, eu-central-1, ap-northeast-1
Format: Standard AWS region codes

Backblaze B2:

Region: us-west-001, eu-central-003
Format: Provider-specific codes

💡 Tip: Use CloudFront or a CDN to serve content globally regardless of bucket region.

S3 Bucket Name

Type: Text input
Default: Empty
Required: When using S3 or S3-Compatible storage

Description

The name of your S3 bucket where files will be stored.

• Must be globally unique across all AWS accounts
• Must follow AWS naming conventions
• Should be created before configuring KeyManager

S3 Bucket Naming Rules

✅ Must be 3-63 characters long
✅ Lowercase letters, numbers, hyphens only
✅ Must start with letter or number
✅ No underscores, spaces, or uppercase
✅ Cannot be formatted as IP address (e.g., 192.168.1.1)

Example Valid Bucket Names

keymanager-prod-files
my-company-license-storage
product-downloads-2024
cdn-assets-us-east

Example Invalid Bucket Names

KeyManager-Files          ❌ (uppercase)
my_company_storage        ❌ (underscores)
files..bucket             ❌ (consecutive periods)
bucket-.com               ❌ (hyphen next to period)

Bucket Configuration Best Practices

Security:

• 🔒 Enable Bucket Versioning for file recovery
• 🔒 Enable Default Encryption (AES-256 or KMS)
• 🔒 Configure CORS only for necessary origins
• 🔒 Block public access unless files need to be public
• 🔒 Enable Access Logging for audit trails

Performance:

• ⚡ Enable Transfer Acceleration for global uploads
• ⚡ Use Intelligent-Tiering for cost optimization
• ⚡ Configure Lifecycle Policies to archive old files

Cost Optimization:

• 💰 Set up Lifecycle Rules to transition to cheaper storage classes
• 💰 Use S3 Intelligent-Tiering for unpredictable access patterns
• 💰 Delete incomplete multipart uploads after 7 days
• 💰 Enable CloudWatch metrics to monitor costs

⚠️ Warning: Make sure the bucket exists in the specified region before testing connection.

S3 Public URL

Type: Text input (URL)
Default: Empty
Required: For serving public files

Description

The base URL used to access files stored in your bucket.

• Used for generating download links
• Can be the bucket’s default URL or a custom domain
• Should include protocol (https://)

URL Format Options

AWS S3 Default URL:

https://bucket-name.s3.region.amazonaws.com
https://your-bucket.s3.us-east-1.amazonaws.com

AWS S3 Website Endpoint:

http://bucket-name.s3-website-region.amazonaws.com

CloudFront CDN:

https://d1234abcdef.cloudfront.net
https://cdn.yourdomain.com (with custom domain)

DigitalOcean Spaces:

https://bucket-name.region.digitaloceanspaces.com
https://bucket-name.region.cdn.digitaloceanspaces.com (with CDN)

Wasabi:

https://s3.wasabisys.com/bucket-name
https://s3.region.wasabisys.com/bucket-name

Backblaze B2:

https://f001.backblazeb2.com/file/bucket-name

CDN Configuration

Why Use a CDN?

✅ Faster downloads for global users
✅ Reduced bandwidth costs
✅ HTTPS for custom domains
✅ DDoS protection
✅ Cache control and optimization

Popular CDN Options:

💡 Tip: Using a CDN can reduce S3 data transfer costs by 50-80%.

S3 Endpoint

Type: Text input (URL)
Default: Empty (uses AWS default)
Required: For S3-compatible providers

Description

Custom endpoint URL for S3-compatible storage providers.

• Only needed for non-AWS services
• Must include protocol (https://)
• Leave empty when using standard AWS S3

Provider-Specific Endpoints

DigitalOcean Spaces:

https://nyc3.digitaloceanspaces.com
https://sfo3.digitaloceanspaces.com
https://sgp1.digitaloceanspaces.com
https://fra1.digitaloceanspaces.com

Wasabi:

https://s3.wasabisys.com (US East 1)
https://s3.us-west-1.wasabisys.com
https://s3.eu-central-1.wasabisys.com
https://s3.ap-northeast-1.wasabisys.com

MinIO (Self-Hosted):

https://minio.yourdomain.com:9000
http://192.168.1.100:9000 (development)

Backblaze B2:

https://s3.us-west-001.backblazeb2.com
https://s3.eu-central-003.backblazeb2.com

Cloudflare R2:

https://account-id.r2.cloudflarestorage.com

Complete Configuration Examples

DigitalOcean Spaces Configuration

Storage Driver: S3-Compatible
Access Key: DO00ABC123XYZ789
Secret Key: ••••••••••••••••••••
Region: nyc3
Bucket: keymanager-files
Public URL: https://keymanager-files.nyc3.digitaloceanspaces.com
Endpoint: https://nyc3.digitaloceanspaces.com

Wasabi Configuration

Storage Driver: S3-Compatible
Access Key: WASABI_ACCESS_KEY_ID
Secret Key: ••••••••••••••••••••
Region: us-east-1
Bucket: my-keymanager-bucket
Public URL: https://s3.wasabisys.com/my-keymanager-bucket
Endpoint: https://s3.wasabisys.com

MinIO (Local/Self-Hosted) Configuration

Storage Driver: S3-Compatible
Access Key: minioadmin
Secret Key: ••••••••••••••••••••
Region: us-east-1
Bucket: keymanager
Public URL: https://minio.company.local:9000/keymanager
Endpoint: https://minio.company.local:9000

Backblaze B2 Configuration

Storage Driver: S3-Compatible
Access Key: 001abc123def456789
Secret Key: ••••••••••••••••••••
Region: us-west-001
Bucket: keymanager-prod
Public URL: https://f001.backblazeb2.com/file/keymanager-prod
Endpoint: https://s3.us-west-001.backblazeb2.com

⚠️ Warning: Incorrect endpoints will cause connection failures. Always verify the endpoint URL with your provider’s documentation.

Test Connection Button

Type: Action button
Purpose: Validates storage configuration

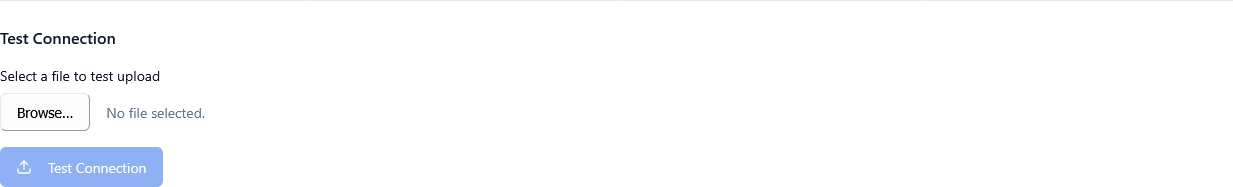

Screenshot showing test connection button

Description

Validates your storage configuration by attempting to:

1. Connect to the storage service
2. Authenticate with provided credentials
3. Access the specified bucket
4. Write a test file
5. Read the test file back
6. Delete the test file

Test Results

✅ Success:

• Green notification: “Storage connection successful”
• All credentials and settings are correct
• Bucket is accessible and writable
• Safe to save configuration

❌ Failure Messages:

Testing Best Practices

💡 Always test before saving – Catch configuration errors early
💡 Test after credential rotation – Verify new keys work
💡 Test from production environment – Ensure network connectivity
💡 Monitor test file cleanup – Verify test files are deleted

⚠️ Warning: Test connection writes a small file to your bucket. Ensure you have write permissions.

Cost Considerations

Storage Costs by Provider (As of 2024)

Cost Optimization Strategies

Storage:

• 📊 Use lifecycle policies to move old files to cheaper storage tiers
• 📊 Enable compression for compressible file types
• 📊 Delete temporary or unused files regularly
• 📊 Use deduplication to avoid storing identical files

Bandwidth:

• 🌐 Use a CDN to reduce S3 transfer costs
• 🌐 Enable CloudFront or provider CDN
• 🌐 Set proper cache headers for static assets
• 🌐 Consider Cloudflare R2 for zero egress costs

Requests:

• ⚡ Cache file metadata to reduce LIST operations
• ⚡ Batch operations instead of individual API calls
• ⚡ Use CloudFront to reduce GET requests to origin

💡 Tip: For high-traffic applications, Cloudflare R2 or Wasabi can save thousands in egress fees.

Performance Optimization

Upload Performance

For Large Files:

• Enable multipart upload (files >100 MB)
• Use S3 Transfer Acceleration for global uploads
• Configure concurrent connections in SDK

For Many Small Files:

• Batch upload operations when possible
• Use asynchronous processing
• Consider concatenating tiny files

Download Performance

CDN Integration:

• Set up CloudFront or provider CDN
• Configure cache-control headers appropriately
• Use edge locations close to users

Direct Downloads:

• Generate presigned URLs for direct S3 access
• Set appropriate expiration times
• Enable range requests for resumable downloads

Recommended Settings by File Type

Security Best Practices

Bucket Security Checklist

✅ Enable bucket versioning for file recovery
✅ Enable default encryption (AES-256 minimum)
✅ Block all public access unless specifically needed
✅ Enable access logging to audit bucket activity
✅ Use bucket policies to restrict access by IP or VPC
✅ Enable MFA Delete for critical buckets
✅ Configure CORS only for required origins
✅ Review IAM policies regularly for least privilege
✅ Enable AWS CloudTrail for API audit logs
✅ Set up AWS Config rules for compliance monitoring

Credential Security

🔐 Never hardcode credentials in source code
🔐 Use environment variables or secrets management
🔐 Rotate keys every 90 days minimum
🔐 Audit credential usage with CloudTrail
🔐 Revoke unused credentials immediately
🔐 Use temporary credentials (STS) when possible
🔐 Enable MFA for IAM users with S3 access

Data Protection

Encryption:

• Enable encryption at rest (SSE-S3, SSE-KMS, or SSE-C)
• Use HTTPS only for data in transit
• Consider client-side encryption for sensitive data

Access Control:

• Use presigned URLs with expiration for temporary access
• Implement bucket policies for IP/VPC restrictions
• Configure VPC endpoints for private access
• Enable S3 Object Lock for compliance and immutability

⚠️ Warning: Public buckets can expose sensitive data and lead to security breaches. Always review public access settings.

Recommended Configurations

Startup / Development

Minimal cost, easy setup

• Storage Driver: Local or S3-Compatible (DigitalOcean Spaces)
• Region: Closest to your server
• Bucket: Single bucket for all files
• Public URL: Provider default or CDN included
• Cost: $0-5/month

Reasoning: Keep it simple and cheap while validating product-market fit.

Small Business / SaaS

Balanced cost and reliability

• Storage Driver: S3-Compatible (Wasabi or Backblaze B2)
• Region: Primary user location
• Bucket: Separate buckets for files vs backups
• Public URL: Provider CDN or Cloudflare
• Cost: $10-50/month

Reasoning: Better price-performance ratio than AWS S3 for growing businesses.

Enterprise / High-Traffic

Maximum reliability and performance

• Storage Driver: S3 (AWS)
• Region: Multi-region with replication
• Bucket: Separate buckets per environment and file type
• Public URL: CloudFront with custom domain
• Cost: $100-1000+/month

Reasoning: AWS provides best ecosystem integration, SLAs, and global infrastructure.

Compliance / Regulated Industries

Data residency and audit requirements

• Storage Driver: S3 or S3-Compatible in required region
• Region: Specific region for compliance (e.g., eu-central-1 for GDPR)
• Bucket: Encrypted, versioned, with Object Lock
• Public URL: Private or authenticated access only
• Cost: Varies by requirements

Reasoning: Meet regulatory requirements for data location, encryption, and audit trails.

Migration Guide

Moving from Local to S3 Storage

Step 1: Set up S3 bucket

• Create bucket in desired region
• Configure encryption and versioning
• Set up IAM user with appropriate permissions

Step 2: Upload existing files

• Use AWS CLI: aws s3 sync /local/path s3://bucket-name/
• Or use GUI tools like Cyberduck or S3 Browser
• Verify file count and sizes match

Step 3: Update KeyManager settings

• Configure S3 credentials and bucket settings
• Test connection to verify
• Save settings

Step 4: Verify application

• Test file uploads through application
• Test file downloads
• Check generated URLs

Step 5: Clean up

• Keep local files as backup initially
• Delete local files after 30 days of stable operation

Moving Between S3 Providers

Use AWS CLI or rclone:

# Using AWS CLI
aws s3 sync s3://old-bucket s3://new-bucket --source-region us-east-1 --region eu-west-1

# Using rclone (supports all providers)
rclone sync old-provider:bucket new-provider:bucket --progress

💡 Tip: Use a migration tool or script to avoid downtime during large migrations.

Important Notes

⚠️ Storage settings require application restart – Changes may not take effect immediately

🔄 Changing drivers requires data migration – Plan carefully before switching storage backends

📊 Monitor storage costs regularly – Set up billing alerts in your provider console

🔒 Protect credentials like passwords – Never expose them in logs or version control

📧 Set up monitoring – Configure alerts for failed uploads or access denied errors

🌐 Test from multiple locations – Ensure global users can access files

Summary Table

Testing Your Configuration

Step 1: Choose and Prepare Your Storage Provider

Select a provider (AWS, DigitalOcean, Wasabi, etc.) and create an account if needed.

Step 2: Create Storage Bucket

Create a bucket following provider documentation and naming conventions.

Step 3: Generate Access Credentials

Create an IAM user or API key with S3 permissions (PutObject, GetObject, DeleteObject, ListBucket).

Step 4: Configure KeyManager Settings

Enter all storage settings including credentials, region, bucket name, and endpoint (if applicable).

Step 5: Test Connection

Click the Test Connection button and verify success message appears.

Step 6: Upload Test File

Use the application to upload a product image or file attachment.

Step 7: Verify File Access

Generate a download link and verify the file is accessible via the public URL.

Step 8: Monitor Logs

Check application logs for any storage-related errors or warnings.

Step 9: Set Up Monitoring

Configure provider-specific alerts for failed uploads or excessive costs.

Step 10: Document Configuration

Save your configuration details (without credentials) for disaster recovery.

Frequently Asked Questions

Q: Can I use multiple storage backends simultaneously?
A: Not currently. KeyManager uses a single storage driver for all files. You must choose one backend.

Q: What happens to existing files if I change storage providers?
A: Files remain in the old storage. You must manually migrate them to the new provider. Plan for downtime or gradual migration.

Q: How do I rotate storage credentials?
A: Generate new credentials in your provider console, update KeyManager settings, test connection, then deactivate old credentials.

Q: Can I use S3-compatible storage with AWS CloudFront?
A: Yes, but you’ll need to configure CloudFront with a custom origin pointing to your S3-compatible provider’s URL.

Q: Do I need a CDN for small deployments?
A: Not required, but recommended even for small deployments if you have global users or serve large files frequently.

Q: How do I backup files stored in S3?
A: Enable bucket versioning, set up cross-region replication, or use AWS Backup. For non-AWS providers, use scheduled sync scripts.

Q: What’s the difference between S3 and S3-Compatible?
A: “S3” uses AWS S3 endpoints by default. “S3-Compatible” requires you to specify a custom endpoint for third-party providers.

Q: Can I migrate from one provider to another without downtime?
A: Yes, with careful planning: sync files to new provider, configure new storage in testing, then switch after validation.

Q: Are there file size limits?
A: AWS S3 supports up to 5 TB per file. Most S3-compatible providers have similar limits. Check your specific provider’s documentation.

Q: How do I troubleshoot “Access Denied” errors?
A: Verify IAM permissions include s3:PutObject, s3:GetObject, s3:DeleteObject. Check bucket policies and ACLs don’t block access.

How to Access

1. Log in to the Admin Portal
2. Navigate to Settings in the main menu
3. Click the Storage tab
4. Configure the storage driver and provider-specific settings
5. Click Test Connection to validate
6. Click Save Settings at the bottom

Related Settings

• Settings Overview - All settings tabs
• General Settings - Application configuration
• Email Settings - Notification delivery
• Backup Settings - Database backups (may use same storage)

Proper storage configuration ensures reliable file delivery, optimal performance, and cost-effective scaling.
