Email Settings

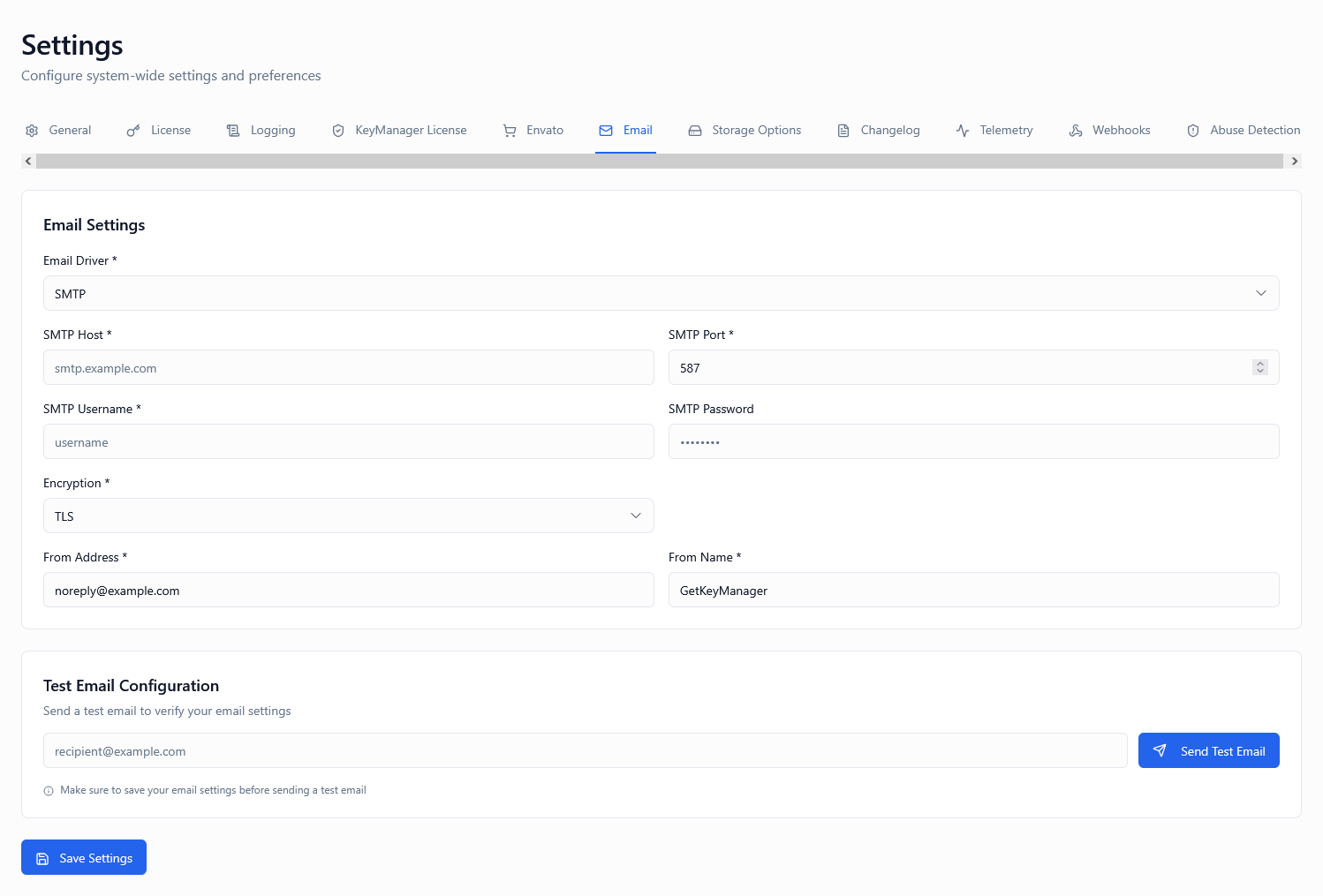

Screenshot of Email Settings tab

Overview

Email Settings configure how your KeyManager platform sends transactional and notification emails to customers and administrators. Proper email configuration is critical for:

• Customer communication (license activation, expiration warnings)
• Account management (password resets, welcome emails)
• Security notifications (suspicious activity alerts)
• Administrative alerts (abuse detection, system events)
• Payment and billing confirmations
• Support ticket responses

These settings control:

1. Email Driver – Choose your email delivery method
2. SMTP Configuration – Server connection details
3. Authentication – Credentials and security

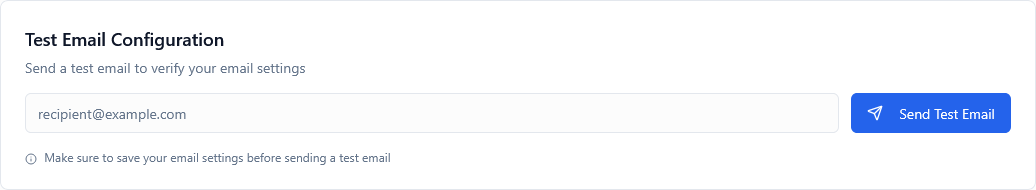

4. Test Email – Verify configuration before going live

Email Driver

Type: Dropdown select
Options: SMTP, Sendmail, Mailgun, Amazon SES
Default: SMTP

Screenshot showing email driver options

Description

The email driver determines how your platform sends emails. Each driver has different configuration requirements, performance characteristics, and infrastructure needs.

Available Drivers

SMTP (Simple Mail Transfer Protocol)

Most Common Choice

• Uses standard SMTP protocol
• Works with any email provider (Gmail, Outlook, SendGrid, etc.)
• Requires SMTP server credentials
• Suitable for all deployment sizes
• Most compatible and well-supported

Best For:

• ✅ General purpose email sending
• ✅ Using existing email providers (Gmail, Office 365)
• ✅ Small to medium deployments
• ✅ When you need maximum compatibility

Sendmail

Server-Based Email

• Uses local server’s sendmail binary
• No external SMTP server needed
• Requires properly configured mail server on host
• Common in traditional Linux server environments
• May have deliverability challenges

Best For:

• ✅ Self-hosted servers with configured mail
• ✅ Internal networks with mail relays
• ✅ Legacy system compatibility

Not Recommended For:

• ❌ Cloud deployments (AWS, Azure, GCP)
• ❌ Docker/containerized environments
• ❌ When deliverability is critical

Mailgun

Transactional Email API

• Direct integration with Mailgun service
• API-based, not SMTP
• Excellent deliverability
• Built-in analytics and tracking
• Requires Mailgun account and API key

Best For:

• ✅ High-volume senders (>10,000 emails/month)
• ✅ When email analytics are important
• ✅ Applications requiring high deliverability
• ✅ SaaS products with automated emails

Requirements:

• Mailgun account (free tier available)
• Domain verification
• API credentials

Amazon SES (Simple Email Service)

AWS-Native Email

• Fully integrated with AWS ecosystem
• Extremely cost-effective at scale
• High deliverability with AWS reputation
• Requires AWS account and credentials
• Ideal for AWS-hosted applications

Best For:

• ✅ Applications hosted on AWS
• ✅ Large-scale email sending
• ✅ When cost optimization is critical
• ✅ Already using AWS services

Requirements:

• AWS account
• SES verified domain or email
• IAM credentials with SES permissions
• Move out of SES sandbox (for production)

Driver Comparison

When to Use Each Driver

Choose SMTP if:

• You’re using Gmail, Office 365, or other standard providers
• You want simple, universal compatibility
• You’re just getting started
• You have existing SMTP credentials

Choose Sendmail if:

• You have a properly configured mail server
• You’re on a traditional Linux host
• You need no external dependencies
• Deliverability is not critical

Choose Mailgun if:

• You need guaranteed deliverability
• You want email analytics and tracking
• You send high volumes
• You need webhook notifications for opens/clicks

Choose Amazon SES if:

• Your application runs on AWS
• You need low-cost, high-volume sending
• You’re already using AWS services
• You need tight AWS integration

💡 Tip: For production deployments, SMTP with a reputable provider (SendGrid, Mailgun, Postmark) or Amazon SES are recommended for best deliverability.

SMTP Host

Type: Text input
Default: localhost
Required: When using SMTP driver

Screenshot showing SMTP host field

Description

The SMTP host is the server address that will send your emails. This is provided by your email service provider.

Common SMTP Hosts

Gmail (Google Workspace):

smtp.gmail.com

Office 365 / Outlook.com:

smtp.office365.com

SendGrid:

smtp.sendgrid.net

Mailgun (SMTP mode):

smtp.mailgun.org

Amazon SES (SMTP mode):

email-smtp.us-east-1.amazonaws.com
(Region-specific - replace us-east-1 with your region)

Postmark:

smtp.postmarkapp.com

Sparkpost:

smtp.sparkpostmail.com

Custom/Self-Hosted:

mail.yourdomain.com

Best Practices

1. Use provider’s official SMTP hostname – Never use IP addresses
2. Verify hostname spelling – Typos cause connection failures
3. Check regional endpoints – Some providers have region-specific hosts
4. Use SSL/TLS-enabled hosts – Security is mandatory
5. Test with telnet – Verify connectivity before configuring

Troubleshooting

Error: “Could not connect to SMTP host”

• ✅ Verify hostname is correct
• ✅ Check firewall rules allow outbound SMTP
• ✅ Ensure port is correct (see SMTP Port section)
• ✅ Verify server has internet connectivity

Error: “Connection refused”

• ✅ Check if port is blocked by firewall
• ✅ Verify SMTP service is running
• ✅ Try telnet to test: telnet smtp.example.com 587

SMTP Port

Type: Numeric input
Default: 587
Common Values: 25, 465, 587, 2525

Screenshot showing SMTP port field

Description

The SMTP port determines which network port is used to connect to the email server. Different ports have different security and compatibility characteristics.

Port Reference Guide

Port 587 (RECOMMENDED)

STARTTLS - Submission Port

• ✅ Industry standard for email submission
• ✅ Uses STARTTLS encryption
• ✅ Required by most modern providers
• ✅ Best security and compatibility
• ✅ Widely supported

Use this port for:

• Gmail
• Office 365
• SendGrid
• Mailgun
• Postmark
• Most professional email services

Port 465

SSL/TLS - Legacy Secure

• Implicit SSL/TLS from connection start
• Deprecated but still widely supported
• Some providers require this port
• More secure than port 25

Use this port for:

• Older email systems
• When provider specifically requires it
• Legacy applications

Port 25

Unencrypted - Legacy

• ⚠️ NOT RECOMMENDED for modern applications
• No encryption by default
• Often blocked by ISPs and cloud providers
• Vulnerable to interception
• Used for server-to-server relay

Avoid unless:

• Internal network only
• No sensitive data
• Required by legacy systems

Port 2525

Alternative Submission Port

• Used when port 587 is blocked
• Same security as port 587
• Offered by some providers as backup
• Common in cloud environments

Use this port when:

• Port 587 is blocked by firewall
• Provider offers it as alternative (e.g., SendGrid)

Port Recommendations by Provider

Security Considerations

Port Security Ranking:

1. Port 587 (TLS) – Most secure and recommended
2. Port 465 (SSL) – Secure, legacy support
3. Port 2525 (TLS) – Secure, firewall-friendly
4. Port 25 – Insecure, avoid if possible

⚠️ Warning: Never use port 25 for sending customer emails. Many cloud providers block it to prevent spam.

Best Practices

1. Always use 587 unless provider specifies otherwise
2. Enable encryption (TLS/SSL) regardless of port
3. Test port connectivity before deployment
4. Document your configuration for team reference
5. Use fallback port if primary is blocked

Testing Port Connectivity

Linux/Mac:

telnet smtp.gmail.com 587
# Should connect successfully

Windows PowerShell:

Test-NetConnection -ComputerName smtp.gmail.com -Port 587
# Should show TcpTestSucceeded: True

SMTP Username

Type: Text input
Default: Empty
Required: When SMTP authentication is required (most providers)

Screenshot showing SMTP username configuration

Description

The SMTP username is your authentication credential for the email server. This proves you have permission to send emails through the provider.

Username Format by Provider

Gmail:

your-email@gmail.com
(Full email address)

Google Workspace:

your-email@yourdomain.com
(Full email address)

Office 365:

your-email@yourdomain.com
(Full email address)

SendGrid:

apikey
(Literally the word "apikey" - not your actual key)

Mailgun:

postmaster@your-domain.com
(Provided by Mailgun in your domain settings)

Amazon SES:

AKIAIOSFODNN7EXAMPLE
(IAM SMTP credentials, NOT your AWS access key)

Postmark:

Your-Server-Token
(Found in your Postmark server settings)

Provider-Specific Notes

Gmail / Google Workspace

Important:

• Use full email address as username
• Must enable “Less Secure Apps” OR use App Password
• Recommended: Create App-Specific Password for better security
• 2FA users MUST use App Password

Creating Gmail App Password:

1. Go to Google Account settings
2. Security → 2-Step Verification
3. App Passwords
4. Generate password for “Mail”
5. Use generated password (not your account password)

Office 365

• Use full email address
• Modern authentication supported
• May require app-specific password for 2FA accounts
• Legacy authentication being phased out

SendGrid

• Username is always apikey
• Password is your actual API key
• API key format: SG.xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx

Amazon SES

• CRITICAL: Use SMTP credentials, not IAM access keys
• Generate SMTP credentials in SES console
• Format: AKIAIOSFODNN7EXAMPLE
• Region-specific credentials

Mailgun

• Username format: postmaster@mg.yourdomain.com
• Found in Mailgun dashboard under domain settings
• Not the same as your Mailgun account email

Security Best Practices

1. Never hardcode credentials in source code
2. Use environment variables for configuration
3. Rotate credentials periodically (every 90 days)
4. Use app-specific passwords when available
5. Limit permissions to send-only (no read access)
6. Monitor usage for unauthorized activity

💡 Tip: Create a dedicated email account for application sending rather than using personal credentials

SMTP Password

Type: Password input (hidden)
Default: Empty
Required: When SMTP authentication is required
Security: Encrypted at rest

Screenshot showing SMTP password configuration

Description

The SMTP password authenticates your connection to the email server. This is highly sensitive and must be protected.

Password Types by Provider

Gmail:

• Use App-Specific Password (recommended)
• Or account password if 2FA disabled (not recommended)

Office 365:

• Use account password
• Or app-specific password for 2FA

SendGrid:

• API Key (starts with SG.)
• Generate in SendGrid dashboard

Mailgun:

• API Key or SMTP password
• Found in Mailgun domain settings

Amazon SES:

• SMTP password (generated with SMTP credentials)
• Different from AWS Secret Access Key

Postmark:

• Server API Token
• Found in Postmark server settings

Security Considerations

⚠️ CRITICAL SECURITY WARNINGS:

1. Never share SMTP passwords via email or chat
2. Never commit passwords to version control (Git)
3. Use environment variables for deployment
4. Rotate credentials if compromised
5. Limit password scope to sending only
6. Monitor for unauthorized use via provider dashboards

Password Storage

Development:

# .env file (never commit!)
SMTP_PASSWORD=your-secret-password

Production:

• Use environment variables
• Use secrets management (AWS Secrets Manager, HashiCorp Vault)
• Use platform-specific secret stores (Heroku Config Vars, etc.)

What to Do If Password is Compromised

1. Immediately rotate credentials in provider dashboard
2. Update password in KeyManager settings
3. Review sent emails for unauthorized activity
4. Check provider logs for suspicious access
5. Enable 2FA if not already active
6. Notify team of security incident

Testing Password

After entering password, use the Test Email feature to verify:

• Password is correct
• Authentication succeeds
• Email sends successfully

Email Encryption

Type: Dropdown select
Options: None, TLS, SSL
Default: TLS
Recommended: TLS

Screenshot showing encryption options

Description

Email encryption determines how data is secured during transmission to the SMTP server.

Encryption Options

TLS (Transport Layer Security)

RECOMMENDED - Modern Standard

• ✅ Industry standard for email security
• ✅ Encrypts connection after initial handshake (STARTTLS)
• ✅ Compatible with port 587
• ✅ Required by most modern providers
• ✅ Better performance than SSL

How it works:

1. Connect to server unencrypted
2. Send STARTTLS command
3. Upgrade connection to encrypted
4. Authenticate and send email

Use with:

• Port 587 (most common)
• Port 2525 (alternative)

SSL (Secure Sockets Layer)

Legacy Secure Option

• Implicit encryption from connection start
• Used with port 465
• Older protocol (technically TLS 1.0)
• Still widely supported
• Less flexible than TLS

Use when:

• Provider requires port 465
• Legacy system compatibility
• TLS connection fails

None

NO ENCRYPTION - NOT RECOMMENDED

• ⚠️ Credentials sent in plain text
• ⚠️ Email content visible to eavesdroppers
• ⚠️ Vulnerable to man-in-the-middle attacks
• ⚠️ Violates security best practices

Only use for:

• Internal networks (behind firewall)
• Testing environments
• When explicitly required by provider

Encryption Recommendations

⚠️ Never use “None” in production – Customer data and credentials will be exposed

Sender Name (From Name)

Type: Text input
Default: Application Name
Maximum Length: 64 characters

Screenshot showing sender name field

Description

The sender name appears as the “From” name in recipient email clients. This is the friendly name customers see, separate from the email address.

Example:

From: Acme License Portal <noreply@acme.com>
       ^^^^^^^^^^^^^^^^^^^^
       Sender Name

Best Practices

Professional Naming:

• Use your company or product name
• Be consistent across all emails
• Avoid generic names like “Noreply” or “System”
• Match your brand voice

Examples:

Impact on Email Delivery

Good Sender Names:

• ✅ Professional and recognizable
• ✅ Match email domain
• ✅ Build trust and engagement

Bad Sender Names:

• ❌ All caps: “URGENT NOTIFICATION”
• ❌ Generic: “noreply”
• ❌ Spammy: “Click Here!”
• ❌ Misleading: “Your Friend”

Regional Considerations

Localization:

• For international audiences, consider localized sender names
• Use language-appropriate characters
• Test display in various email clients

💡 Tip: Match your sender name to your application name for consistency

Sender Email (From Address)

Type: Email input
Default: noreply@yourdomain.com
Validation: Must be valid email format

Screenshot showing sender email field

Description

The sender email is the “From” email address that appears in sent emails. This must be an address you control and have permission to send from.

Best Practices

Address Selection:

Recommended Formats:

• noreply@yourdomain.com – Automated emails
• support@yourdomain.com – Customer can reply
• licensing@yourdomain.com – Specific purpose
• notifications@yourdomain.com – System alerts

Avoid:

• ❌ Personal addresses (@gmail.com, @yahoo.com)
• ❌ Addresses you don’t control
• ❌ Generic providers (looks unprofessional)
• ❌ Addresses without SPF/DKIM records

Domain Authentication

Critical for Deliverability:

SPF (Sender Policy Framework):

• DNS record authorizing servers to send on your behalf
• Required by most email providers
• Prevents spoofing

DKIM (DomainKeys Identified Mail):

• Cryptographic signature proving email authenticity
• Increases trust and deliverability
• Set up in your email provider dashboard

DMARC (Domain-based Message Authentication):

• Policy for handling failed authentication
• Builds on SPF and DKIM
• Essential for enterprise senders

Provider-Specific Requirements

Gmail/Google Workspace:

• Must use @gmail.com or verified domain
• Must match SMTP username

Amazon SES:

• Must verify email or domain in SES console
• Requires clicking verification link
• Different process for production access

SendGrid:

• Domain verification required
• Single sender verification for testing
• Full domain authentication for production

Mailgun:

• Domain must be verified and DNS configured
• SPF and DKIM records required
• Takes 24-48 hours to fully propagate

Noreply vs Reply-Enabled

Recommendation: Use reply-enabled address (support@) for better customer experience

Test Email Functionality

Type: Button action with email input
Purpose: Validate configuration before production use

Screenshot showing test email functionality

Description

The test email feature sends a sample email to verify your SMTP configuration is working correctly before going live.

How to Use

1. Configure all SMTP settings (host, port, username, password, encryption)
2. Enter a recipient email address
3. Click Send Test Email
4. Check recipient inbox (and spam folder)
5. Verify email arrived successfully

What the Test Email Contains

Subject: Test Email from [Application Name]

Body:

This is a test email from your KeyManager platform.

If you received this email, your email configuration is working correctly.

Configuration Details:
- SMTP Host: smtp.example.com
- Port: 587
- Encryption: TLS
- Sent at: 2024-01-15 14:30:00 UTC

Do not reply to this email.

Interpreting Test Results

✅ Success Indicators:

• Email appears in inbox within 1-2 minutes
• Sender name displays correctly
• From address is correct
• No warnings or spam flags

❌ Failure Indicators:

• Email does not arrive
• Email goes to spam
• Sender appears as “via smtp.example.com”
• Authentication warnings displayed

Common Test Failures and Solutions

“Connection Refused”

Possible Causes:

• Incorrect SMTP host
• Wrong port number
• Firewall blocking outbound SMTP

Solutions:

• ✅ Verify hostname spelling
• ✅ Try port 587 (TLS) or 465 (SSL)
• ✅ Check firewall rules
• ✅ Test connectivity: telnet smtp.host.com 587

“Authentication Failed”

Possible Causes:

• Incorrect username or password
• Account requires app-specific password
• 2FA enabled without app password

Solutions:

• ✅ Double-check credentials
• ✅ Generate app-specific password
• ✅ Verify account is active

“Email Goes to Spam”

Possible Causes:

• Missing SPF/DKIM records
• Unverified domain
• Poor sender reputation

Solutions:

• ✅ Set up SPF and DKIM
• ✅ Verify domain with provider
• ✅ Warm up sender reputation gradually
• ✅ Use reputable email provider

“Email Not Delivered”

Possible Causes:

• Recipient address invalid
• Aggressive spam filters
• Sender domain blocklisted

Solutions:

• ✅ Check recipient email is valid
• ✅ Try different recipient (Gmail, Outlook)
• ✅ Check sender reputation
• ✅ Review provider logs

Best Practices for Testing

1. Test before production deployment
2. Test to multiple providers (Gmail, Outlook, Yahoo)
3. Check spam folders in addition to inbox
4. Review email headers for authentication results
5. Test after any configuration change
6. Document successful configuration for reference

💡 Tip: Send test emails to yourself and a colleague to verify from multiple perspectives

Recommended Configurations

Gmail (Google Workspace)

Popular choice for small businesses

• Driver: SMTP
• Host: smtp.gmail.com
• Port: 587
• Encryption: TLS
• Username: your-email@gmail.com
• Password: App-Specific Password
• Sender Email: Same as username

Setup Steps:

1. Enable 2FA in Google Account
2. Generate App Password
3. Use app password in SMTP Password field

Office 365

Enterprise email solution

• Driver: SMTP
• Host: smtp.office365.com
• Port: 587
• Encryption: TLS
• Username: your-email@yourdomain.com
• Password: Account password or app password
• Sender Email: Same as username

SendGrid

High-volume transactional email

• Driver: SMTP or Mailgun (API)
• Host: smtp.sendgrid.net
• Port: 587
• Encryption: TLS
• Username: apikey (literally)
• Password: Your SendGrid API key
• Sender Email: verified@yourdomain.com

Setup Steps:

1. Create SendGrid account
2. Verify domain or single sender
3. Generate API key
4. Use “apikey” as username

Amazon SES

Cost-effective AWS solution

• Driver: Amazon SES or SMTP
• Host: email-smtp.us-east-1.amazonaws.com
• Port: 587
• Encryption: TLS
• Username: SMTP username (from SES)
• Password: SMTP password (from SES)
• Sender Email: verified@yourdomain.com

Setup Steps:

1. Verify domain in SES console
2. Generate SMTP credentials (not IAM)
3. Request production access (exit sandbox)
4. Configure SPF and DKIM

Mailgun

Developer-friendly email API

• Driver: Mailgun (preferred) or SMTP
• Host: smtp.mailgun.org
• Port: 587
• Encryption: TLS
• Username: postmaster@mg.yourdomain.com
• Password: Your Mailgun password
• Sender Email: verified@yourdomain.com

Important Notes

⚠️ Always use encryption (TLS/SSL) – Never send credentials unencrypted

🔒 Rotate passwords every 90 days – Security best practice

📧 Verify domain for better deliverability – SPF and DKIM are essential

✉️ Test thoroughly before production – Avoid surprises with customer emails

🚫 Never use personal email accounts – Use dedicated service accounts

Summary Table

Frequently Asked Questions

Q: Which email provider is best for KeyManager?
A: For most users, SendGrid or Amazon SES offer the best balance of reliability, deliverability, and cost. Gmail works well for low-volume senders.

Q: Can I use a free Gmail account?
A: Yes for testing, but not recommended for production. Gmail has sending limits (500/day) and may flag automated emails as spam.

Q: What’s the difference between TLS and SSL?
A: TLS is the modern, more secure version. Both encrypt email, but TLS is preferred. Use TLS with port 587.

Q: Why do my emails go to spam?
A: Most often due to missing SPF/DKIM records. Verify your domain with your email provider and set up proper DNS records.

Q: How do I know if my configuration is correct?
A: Use the Test Email feature. If the email arrives in your inbox with correct sender info, configuration is valid.

Q: Can I change email settings without affecting sent emails?
A: Yes, settings only apply to future emails. Already-sent emails are not affected.

Q: Should I use noreply@ or support@ as sender?
A: Use support@ or a monitored address for better customer experience. Noreply addresses frustrate users who want to respond.

How to Access

1. Log in to the Admin Portal
2. Navigate to Settings in the main menu
3. Click the Email Settings tab
4. Configure SMTP settings
5. Send test email to verify
6. Click Save Settings at the bottom
7. Monitor email delivery in production

Related Settings

• Settings Overview - All settings tabs
• General Settings - Configure support email
• Webhook Settings - Email event notifications
• Logging Settings - Track email sending events

Proper email configuration ensures reliable communication with customers and administrators.
